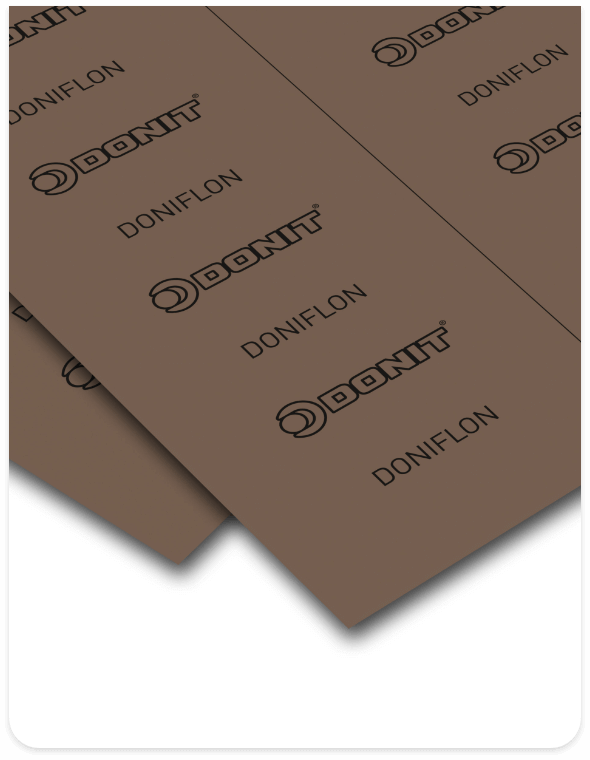

Material
2020
Composition
Modified PTFE resin filled with silica
Colour
Fawn
Properties
Suitable for concentrated acids, alkalis, solvents, fuels and steam. Not suitable for molten alkali metals and fluorine compounds. Very low gas permeability.
Industries
Food & beverage industry, pharmaceutical industry, chemical industry, pulp & paper industry.
Application
Performance is far superior to Virgin PTFE Gaskets, PTFE Envelope Gaskets and PTFE Filled Seals.
Certificates
On request, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Insist on all the above listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 2.1 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 150 °C | DIN 52913 | MPa | 13 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.002 |
| Max OperatinG | |||
| Peak Temp | °C | -200 | |
| Continuous Temp | °C | 260 | |
| Pressure | Bar | 80 | |
