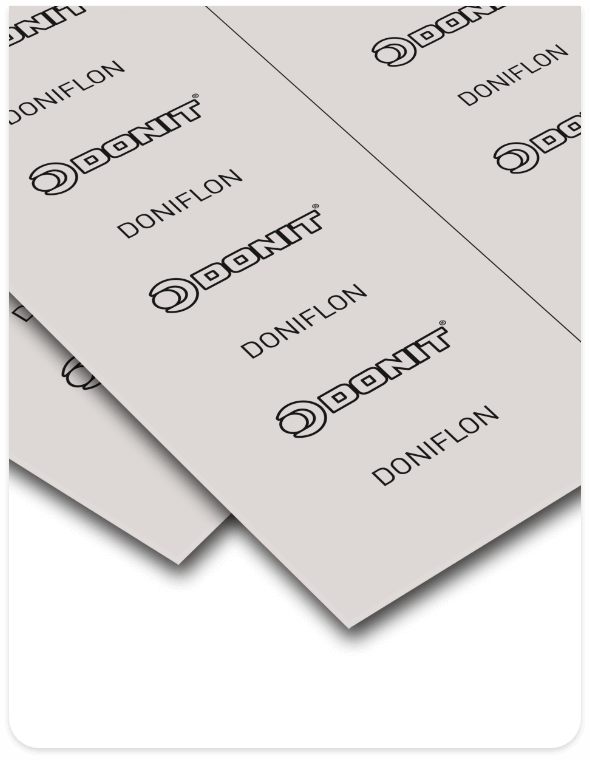

Material
900E
Composition
Expanded PTFE or Soft PTFE
Colour
White
Properties
It is suitable for nearly all media and for many applications including pressure-sensitive connections like Glass Lined Piping.
Industries
Food & beverage industry, pharmaceutical industry, chemical industry, pulp & paper industry.
Application
Performance is far far superior to Virgin PTFE Gaskets, PTFE Envelope Gaskets and PTFE Filled Seals.
Certificates
On request, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 0.9 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 150 °C | DIN 52913 | MPa | 16 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.002 |
| Max OperatinG | |||
| Peak Temp | °C | -200 | |
| Continuous Temp | °C | 260 | |
| Pressure | Bar | 100 | |
