Material
EM
Composition

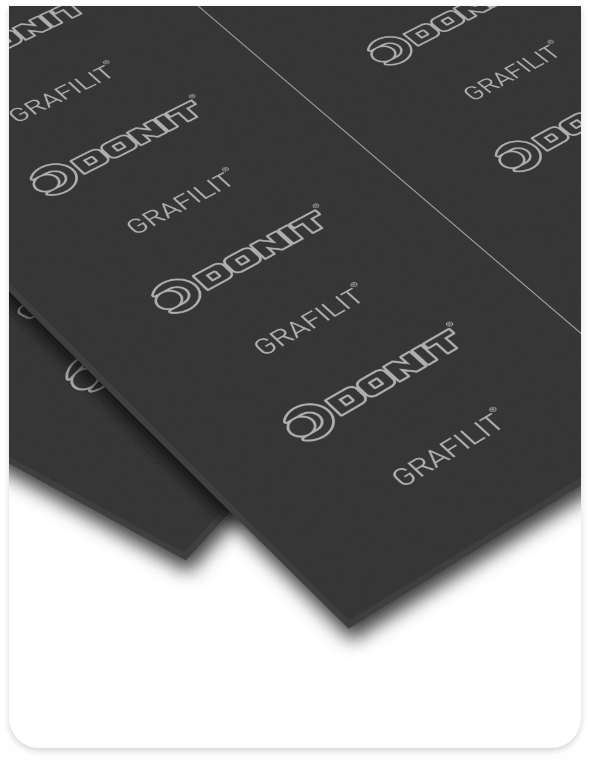

Flexible graphite sheet with a Nickel-Chromium Special Mesh.
Colour
Black
Properties
An excellent media resistance and the safety aspect, even in applications with cycling loads makes this material superior.
Industries
Oil and gas industry, chemical industry, petrochemical industry, power generation industry, pulp and paper industry, shipbuilding, heat exchangers.
Application
Can replace Spiral Wound Gaskets depending upon the application. Consult our Engineering Team for a solution.
Certificates
On Request, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.4 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 49 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.05 |
| Max OperatinG | |||
| Peak Temp | °C | -200 | |
| Continuous Temp | °C | 450 | |
| Pressure | Bar | 200 | |
