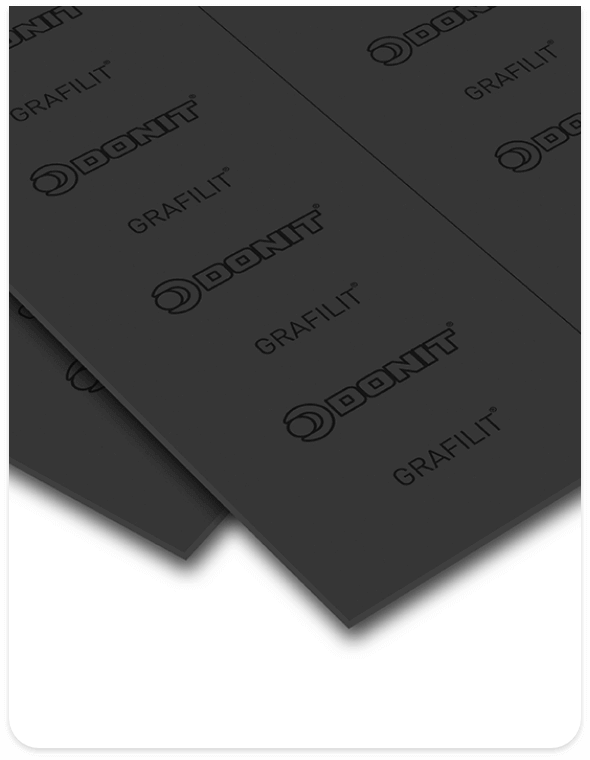

Grafilit® SF

Material

SF

Composition

Flexible graphite sheets without an insert.

Colour

Black

Properties

Suitable for almost all chemicals, in the food industry and in contact with drinking water. Applicable in all industries, especially for valves, pumps, and load sensitive equipment.

Industries

Chemical industry, food industry, OEM industry.

Certificates

BAM (Oxygen), DIN-DVGW DIN 3535-6, DVGW KTW, DVGW VP 401, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)

Equivalent

Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.

Download Technical Document

Density DIN 28090-2 g/cm3 1.0
Stress Resistance
16 h, 50 MPa, 300 °C DIN 52913 MPa 49
Specific Leak Rate DIN 3535-6 mg/(s.m) 0.05
Max OperatinG
Pressure Bar 80
