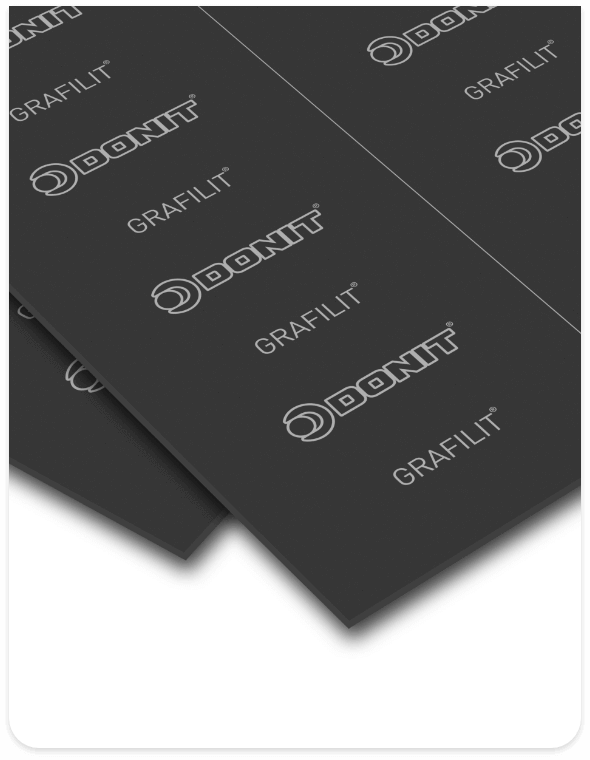

Grafilit® SL

Material

SL

Composition

Flexible graphite sheets laminated with flat stainless steel Foil insertion (AISI 316; 0.05mm).

Colour

Black

Properties

Suitable for a wide range of applications especially for higher operating pressures such as in gas supply, compressors, pumps, and valves.

Industries

Chemical industry, petrochemical industry, OEM industry.

Certificates

BAM (Oxygen), DIN-DVGW DIN 3535-6, DVGW KTW, DVGW VP 401, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)

Equivalent

Insist on all the above-listed certificates and approvals to assess Equivalence.

Download Technical Document

Density DIN 28090-2 g/cm3 1.3
Stress Resistance
16 h, 50 MPa, 300 °C DIN 52913 MPa 49
Specific Leak Rate DIN 3535-6 mg/(s.m) 0.05
Max OperatinG
Peak Temp °C -200
Continuous Temp °C 450
Pressure Bar 100
