Material

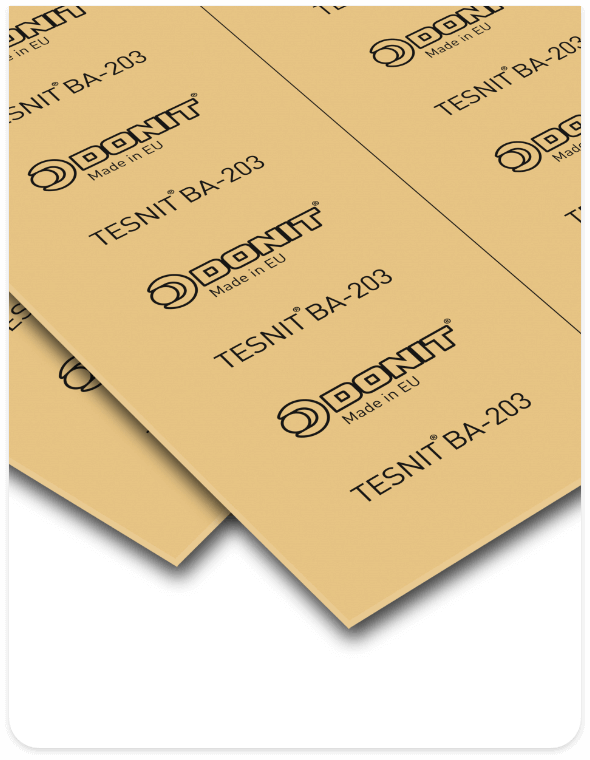

BA-203
Composition
Aramid fibers bonded with NBR. Available with wire reinforcement on request.
Colour
Yellow
Properties
Good resistance to water, gases, oils, and fuels.
Industries
Shipbuilding, the water supply industry.
Certificates
Germanischer Lloyd, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on the above-listed certificates to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.8 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 25 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.08 |
| Max OperatinG | |||
| Peak Temp | °C | 250 | |
| Continuous Temp | °C | 200 | |
| Steam | °C | 160 | |
| Pressure | Bar | 50 | |
