Material

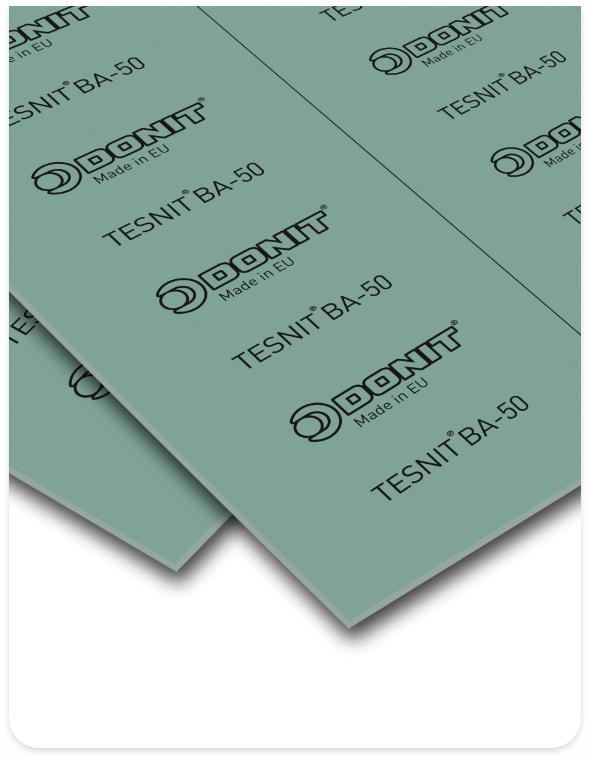

BA-50
Composition
Aramid fibers bonded with NBR. Available with wire reinforcement on request.
Colour
Light green
Properties
Excellent chemical resistance and good dynamic resistance; Good resistance to water, gases, fuels, and oils.
Industries
Gas supply, food industry, chemical industry, potable water supply, shipbuilding.
Certificates
DIN-DVGW DIN 3535-6, DVGW KTW, Germanischer Lloyd, TA-Luft (VDI 2440), WRAS, EC 1935/2004, DVGW W270, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.8 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 25 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.08 |
| Max OperatinG | |||
| Peak Temp | °C | 280 | |
| Continuous Temp | °C | 220 | |
| Steam | °C | 180 | |
| Pressure | Bar | 80 | |
