Material

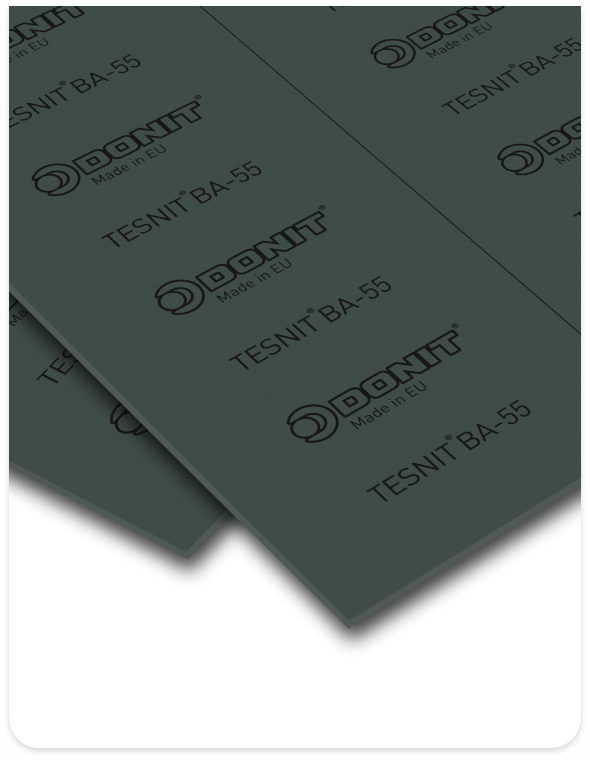

BA-55
Composition
Special synthetic fibers bonded with NBR. Available with wire reinforcement on request.
Colour
Dark green
Properties
Excellent thermal properties and very good steam resistance.
Industries
Potable water supply, gas supply, pumps.
Certificates
BAM (Oxygen), DIN-DVGW DIN 3535-6, DVGW KTW, DVGW W270, DVGW VP 401, DVGW VP 401 (5 bar), EC 1935/2004, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.8 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 35 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 30 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.08 |
| Max OperatinG | |||
| Peak Temp | °C | 350 | |
| Continuous Temp | °C | 270 | |
| Steam | °C | 230 | |
| Pressure | Bar | 100 | |
