Material

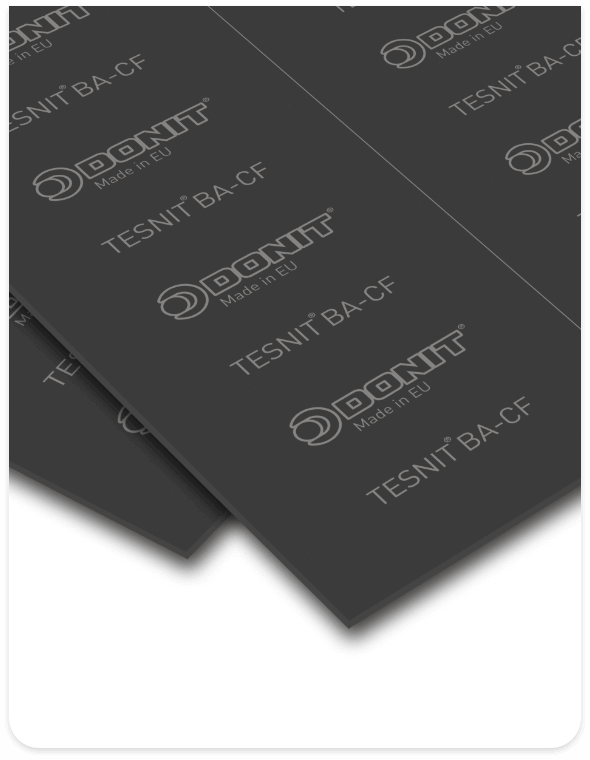

BA-CF
Composition
Carbon fibers bonded with NBR. On request available with wire reinforcement or expanded stainless steel.
Colour
Black
Properties
Excellent resistance to steam and strong alkaline media.
Industries
Chemical industry, petrochemicals, steam supply.
Certificates
BAM (Oxygen), DIN-DVGW DIN 3535-6, DVGW VP 401, DVGW KTW, Germanischer Lloyd, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.7 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 35 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 30 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.1 |
| Max OperatinG | |||
| Peak Temp | °C | 400 | |
| Continuous Temp | °C | 300 | |
| Steam | °C | 280 | |
| Pressure | Bar | 100 | |
