Material

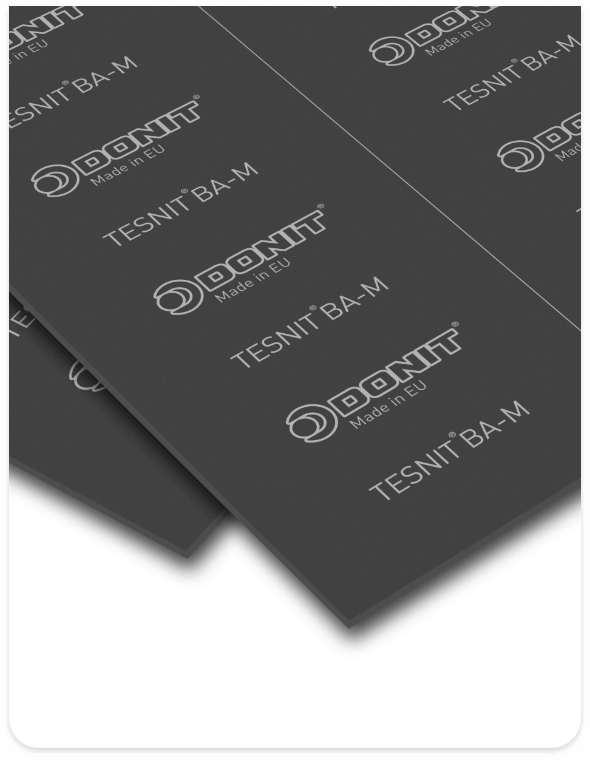

BA-M
Composition
Aramid and engineered mineral fibers bonded with NBR. On request is available with wire reinforcement of expanded stainless steel.
Colour
Grey / Green
Properties
Excellent resistance to steam, oils, fuels, gases, freons, solvents, non-aggressive chemicals, hot water, and other substances.
Industries
Heat exchangers, boilers, radiators, steam supply, power plants.
Certificates
BAM (Oxygen), DIN-DVGW DIN 3535-6, DVGW VP 401, DVGW KTW, TA-Luft (VDI 2440), WRAS, EC 1935/2004, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.7 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 35 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 27 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.05 |
| Max OperatinG | |||
| Peak Temp | °C | 440 | |
| Continuous Temp | °C | 350 | |
| Steam | °C | 300 | |
| Pressure | Bar | 120 | |
