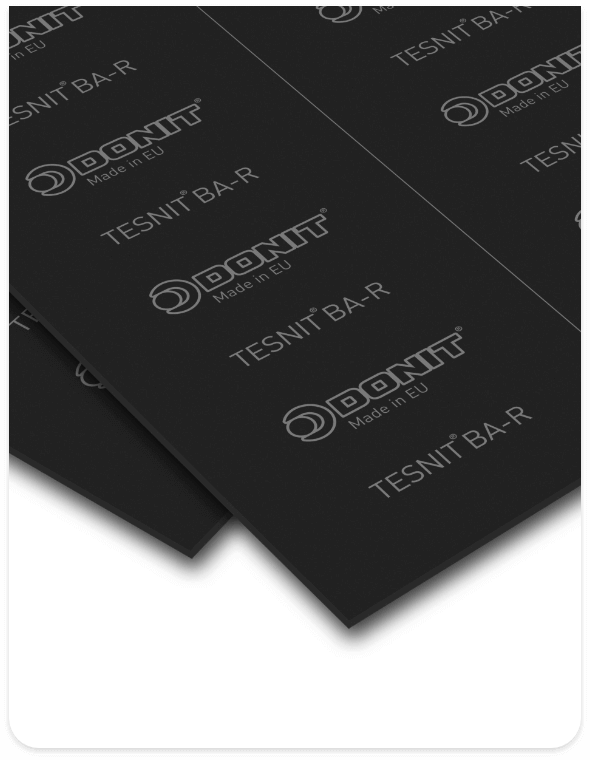

Material
BA-R
Composition
Aramid fibers bonded with NBR, wire reinforcement.
Colour
Black
Properties
Excellent mechanical, dynamic, and thermal resistance and blow-out safety.
Industries
The automotive industry, petrochemicals, shipbuilding.
Certificates
Germanischer Lloyd, BAM (Oxygen), 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 2.0 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 30 |
| 16 h, 50 MPa, 300°C | DIN 52913 | MPa | 25 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.08 |
| Max OperatinG | |||
| Peak Temp | °C | 400 | |
| Continuous Temp | °C | 350 | |
| Steam | °C | ||
| Pressure | Bar | 140 | |
