Material

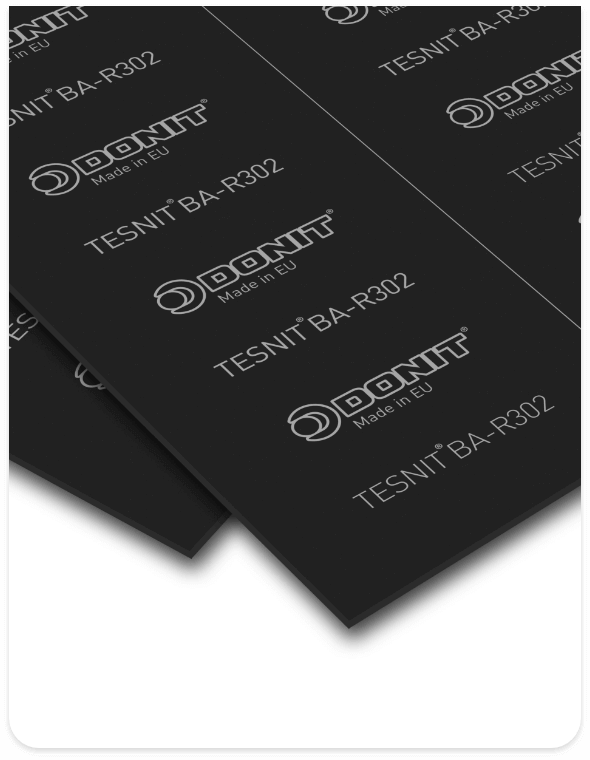

BA-R302
Composition
Inorganic fibers, NBR bonded with a strong wire mesh reinforcement.
Colour
Black
Properties
Superior dynamic and thermal resistance. Excellent blow-out safety.
Industries
The automotive industry, petrochemicals, shipbuilding.
Certificates
Germanischer Lloyd, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 3.7 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 48 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 45 |
| Max OperatinG | |||
| Peak Temp | °C | 650 | |
| Continuous Temp | °C | 600 | |
| Steam | °C | 180 | |
