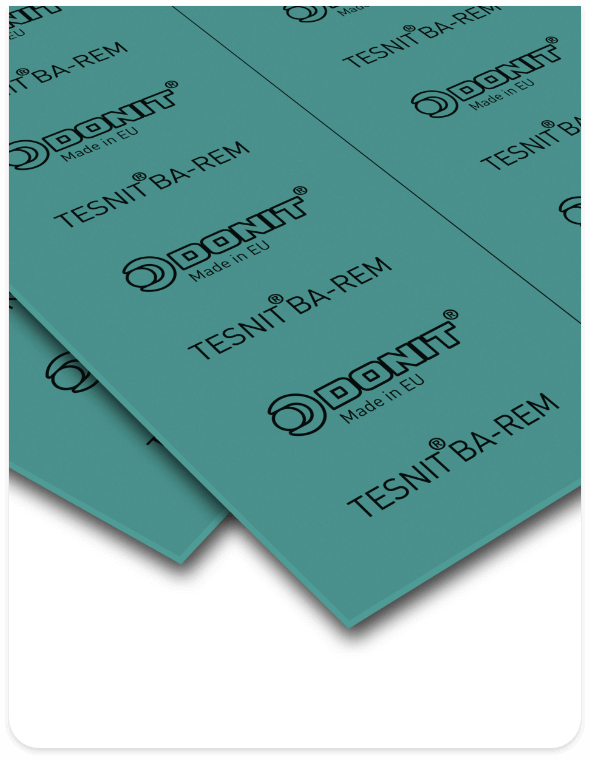

Tesnit® BA-REM

Material

BA-REM

Composition

A balanced mixture of fibers reinforced by expanded stainless steel.

Colour

Green

Properties

This material combines a high blow-out resistance with very high pressure, temperature, and surface stress resistance. Whilst at the same time maintaining high torque retention with good chemical resistance.

Industries

Gas supply, steam supply, power plants.

Certificates

100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)

Equivalent

Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.

Download Technical Document

Density DIN 28090-2 g/cm3 2.2
Stress Resistance
16 h, 50 MPa, 175 °C DIN 52913 MPa 43
16 h, 50 MPa, 300 °C DIN 52913 MPa 38
Specific Leak Rate DIN 3535-6 mg/(s.m) 0.05
Max OperatinG
Peak Temp °C 460
Continuous Temp °C 370
Steam °C 250
Pressure Bar 150
