Material

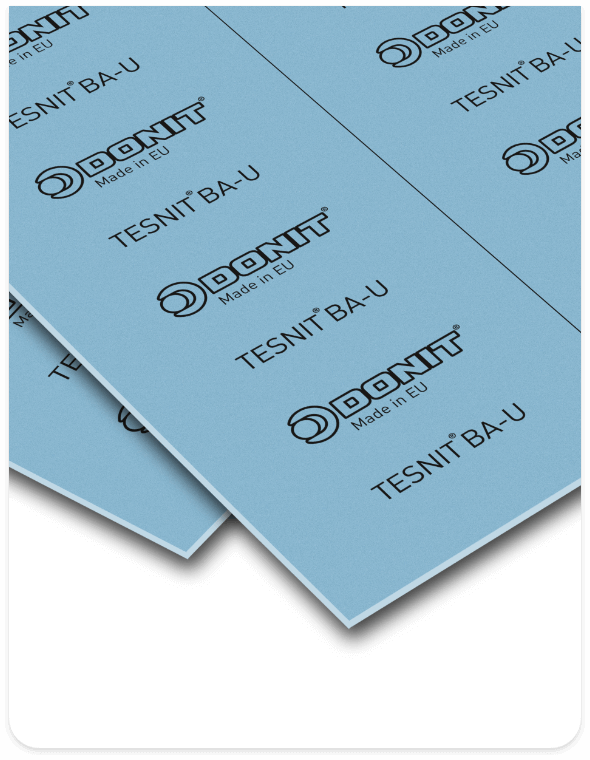

BA-U
Composition
Aramid fibers bonded with NBR. Available with wire reinforcement or expanded stainless steel on request.
Colour
Blue
Properties
Excellent chemical resistance, good mechanical and thermal properties, and low gas permeability.
Industries
The food industry, gas supply, potable water supply, compressors, pumps, general-purpose usage.
Certificates
BAM (Oxygen), DIN-DVGW DIN 3535-6, SVGW DIN 3535-6, DVGW VP 401, DVGW KTW, DVGW W270, TA-Luft (VDI 2440), WRAS, Germanischer Lloyd, ABS, EC 1935/2004, AGA 8140 G (Class III), 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.7 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 27 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 23 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.05 |
| Max OperatinG | |||
| Peak Temp | °C | 350 | |
| Continuous Temp | °C | 250 | |
| Steam | °C | 200 | |
| Pressure | Bar | 100 | |
